Christ’s Hospital School - Horsham
Photon Energy installed a 1.125 MW ground mounted system at Christ's Hospital, Horsham, West Sussex.

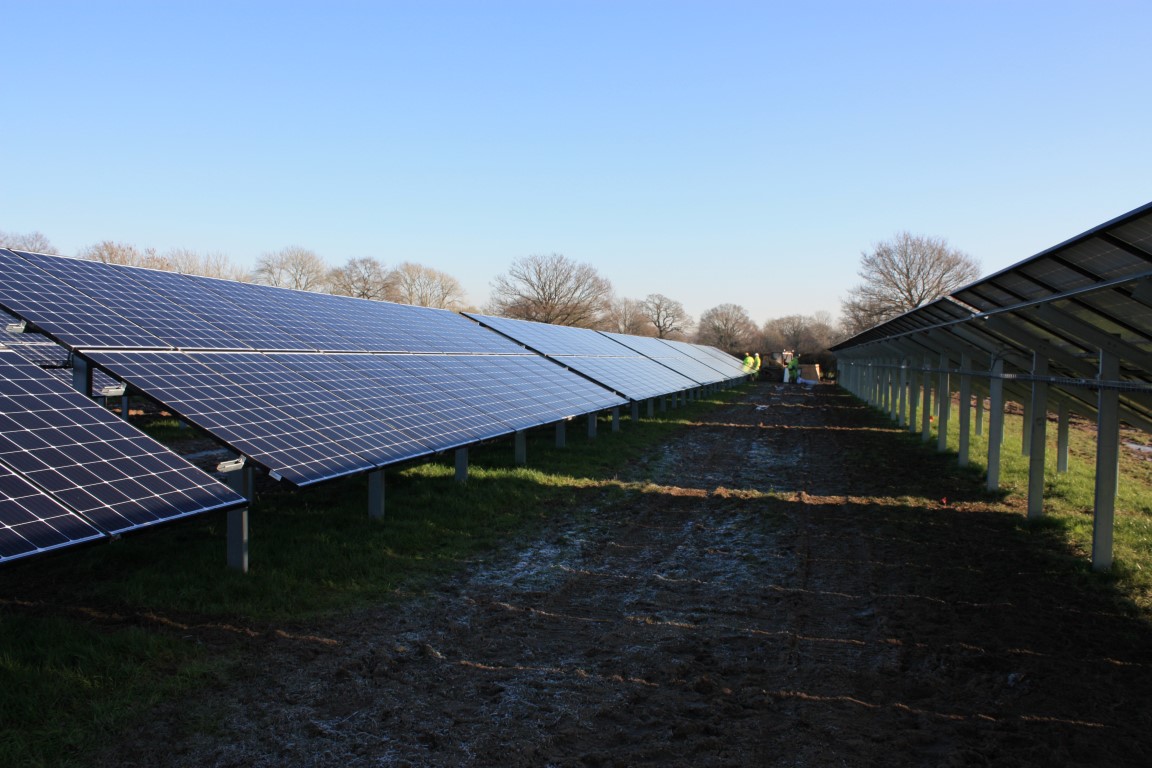

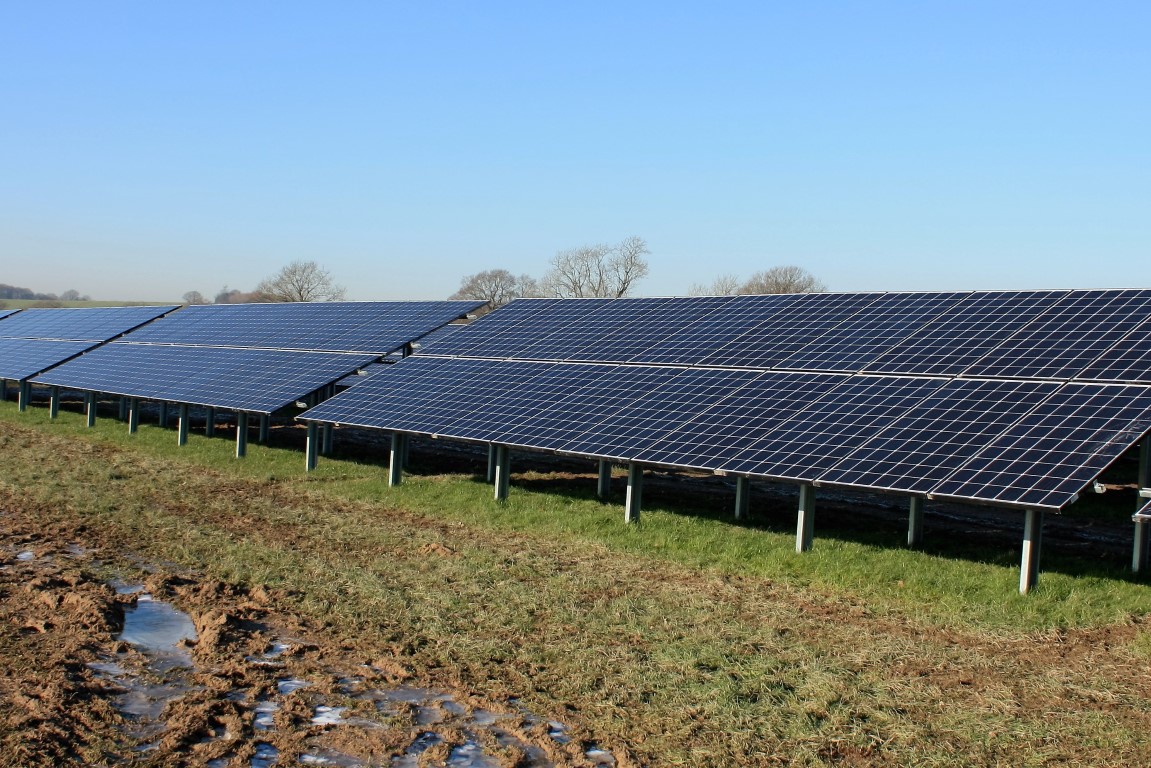

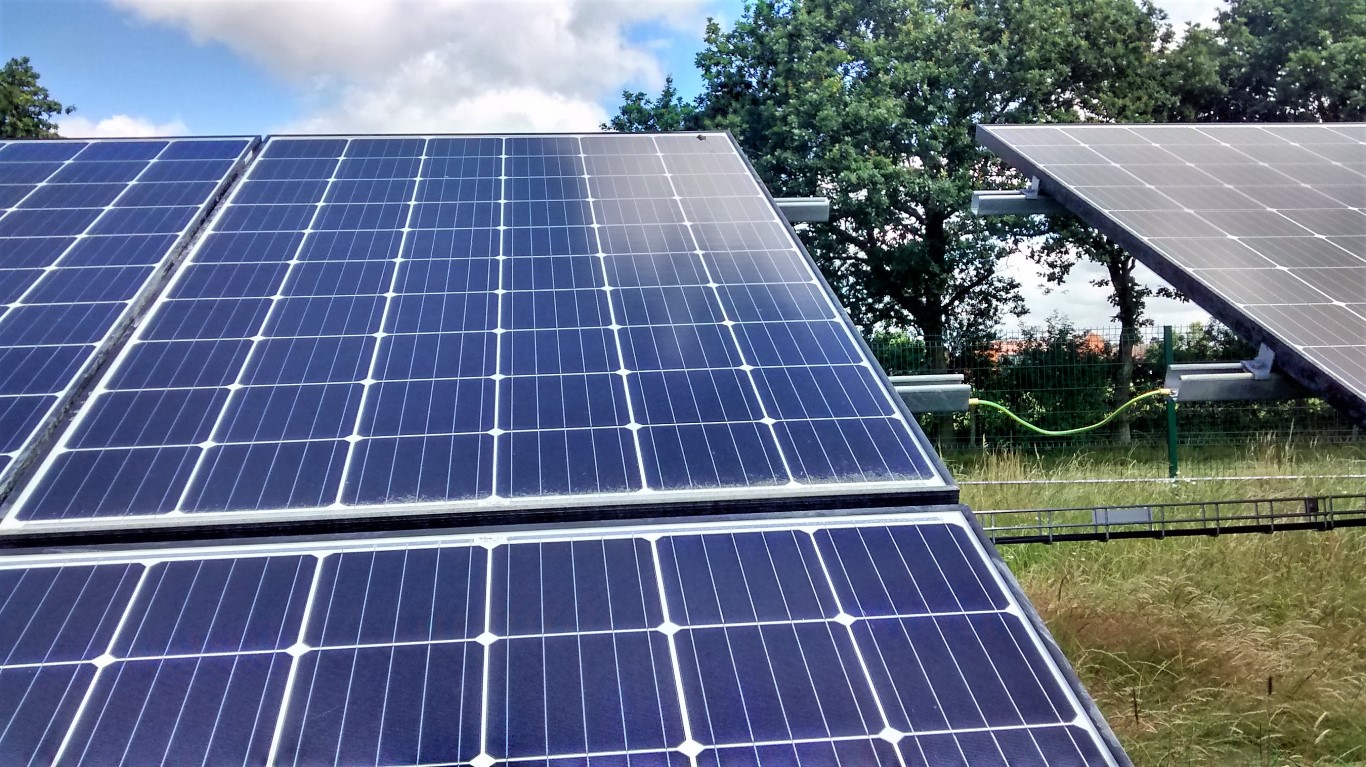

The PV system consists of 4272 x Trina 275W monocrystalline black framed PV modules. The modules are mounted in portrait, double stacked rows with 20 in each string. Following a geotechnical survey and pullout test undertaken by Corbin Industries, we decided to use a 2 pole mounting frame.
Keeping close to Christ’s Hospital’s need for high quality equipment, Photon chose to install the Schneider Optimum range of inverters which included AC and DC surge protection.
As part of the contract Photon Energy installed a 1 km long permanent access track to allow future site maintenance services. For added security a 2m mesh panel fence was installed around the perimeter of the site with thermal imaging CCTV connected to the school’s security system.
The PV system will generate around 1,300 MWh/yr of electricity and save 674 tonnes of CO2 emissions each year.
Jonathan Bates, Managing Director of Photon Energy, said, “By investing in this scheme Christ’s Hospital have diversified away from full reliance on the National Grid and will generate clean, affordable and reliable energy for generations of children.”
System size: 1.125 MW
Energy generation: 824,000 kWh/year
Carbon emissions saving: 674 tCO₂/year.
PV modules: Trina Solar 275 Wp
Inverters: Schneider Optimum
Mounting System: Corbin Industries 2 portrait mounting frame
